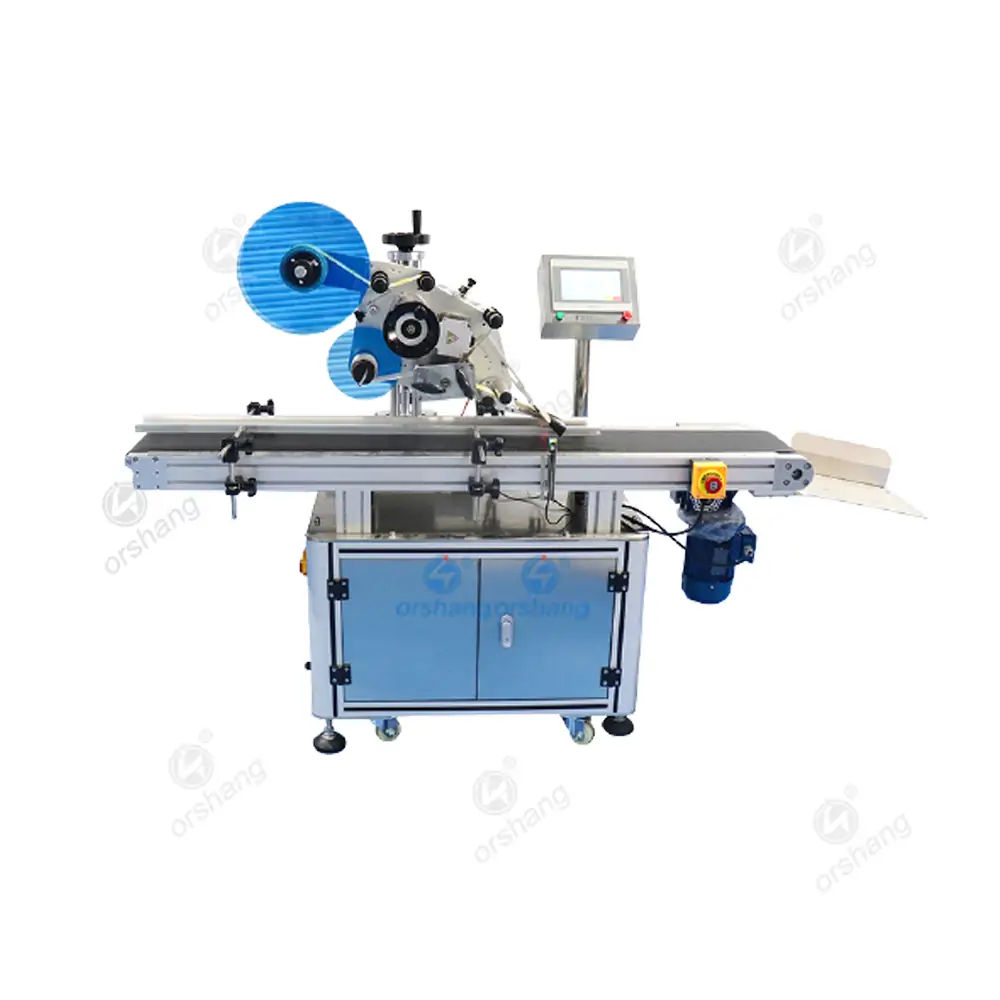

Automatic Flat Labeling Machine

Flat product labelling equipment is designed for accurately and quickly attaching labels to flat products such as boxes, cartons and bags, books, product gift boxes and so on. Automatic flat labelling machine is widely used in printing, stationery, food, daily chemicals, electronics, medicine, and other large products flat labelling, optional coder or printer to the labelling head, can be achieved on the label to print the date of production, batch number and printing bar code and other information. Optional printer to the conveyor belt, can be achieved before or after labelling on the product printing production date, batch number, bar code and other information.

Send Inquiry

Category: automatic labeling machine

Description
Reviews (0)

Automatic flat labeling machine

Welcome to Orshang automatic flat labelling machine product page, in the modern automated high-speed packaging industry, automated packaging solutions have become one of the indispensable equipment. If you have new equipment or improvement ideas for the current production line, you can consult to understand, we are very proud to introduce you to automated packaging labelling solutions.

Product parameters:

Labeling accuracy:	±1mm
Labeling speed:	60～300pcs/minutes
Applicable height：	0.2-200mm
Applicable length：	40-400mm
Applicable width：	40-400mm
Inner diameter of label roll:	Φ76 mm
Label outer diameter:	Φ280 mm
Machine size (LWH) ：	16007801400(mm)
Power supply ：	220V/50HZ
Machine weight：	180KG
Minimum order quantity:	one unit
Shipping Port ：	Guangzhou/shenzhen
Payment Method：	50% deposit and 50% after acceptance
Delivery Capacity ：	20-35pcs/min
Delivery Time：	≧15 working days
Packing Information：	All packed in wooden crates
Payment Method：	L/Cþ D/A þ D/Pþ Western Unionþ Money Gram T/T Paypal

Working principle：

The fully automatic flat labelling machine accurately applies self-adhesive labels by feeding flat products through a conveyor belt into the labelling area. The operator can set the desired product labelling speed and alignment on the touch screen to ensure correct placement of each high speed flat label.

Product advantages：

Adopt motor or servo motor to feed labels:

High labelling precision, marked with meandering deviation correction mechanism design, to ensure that the label traction process does not shift left and right; eccentric technology for traction, to ensure standard accuracy.

Advanced labelling system:

Panasonic PLC, touch screen operation, Panasonic electric eye needle, Germany Leuze label sensor composed of advanced electronic control system, support equipment 7 × 24 hours operation.

Intelligent control:

Automatic photoelectric tracking, with nothing not labeling, no label automatic correction and label automatic detection function, to prevent waste caused by sticker and label leakage.

Support for language:

Automatic plane labelling equipment is equipped with a touch screen operation cross-section, support for a variety of language options, easy to understand the operation, while the equipment has a fault alarm and diagnostic functions, convenient for users to carry out maintenance and repair.
