Multi-function bottle rotary labelling machine product parameters:
| Labeling accuracy: | ±1mm |
|---|---|
| Labeling speed: | 30～120pcs/minutes |
| Applicable round bottle diameter： | Φ20mm～Φ100mm |
| Applicable height: | 20-300mm |
| Applicable length： | 20-310mm |
| Applicable width： | 15-150mm |
| Inner diameter of label roll: | Φ76 mm |
| Label outer diameter: | Φ280 mm |
| Machine size (L*W*H) ： | 1950*1100*1280(mm) |
| Power supply ： | 220V/50HZ |
| Machine weight： | 185KG |
| Minimum order quantity: | one unit |
| Shipping Port ： | Guangzhou/shenzhen |
| Payment Method： | 50% deposit and 50% after acceptance |
| Delivery Capacity ： | 20-35pcs/min |
| Delivery Time： | ≧15 working days |
| Packing Information： | All packed in wooden crates |
| Payment Method： | L/Cþ D/A þ D/Pþ Western Unionþ Money Gram T/T Paypal |

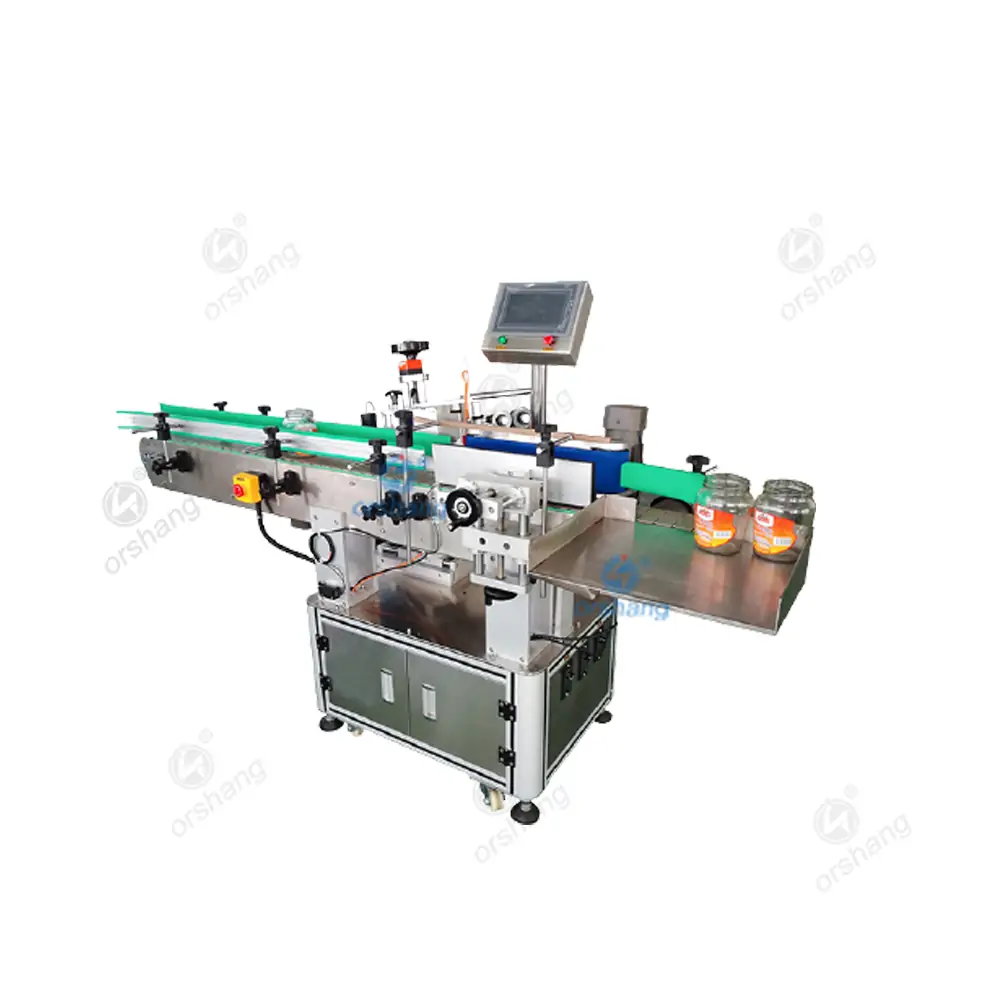

Automatic label applicator for bottles :
Core working principle: the bottle separating mechanism will be bottled after the separation of products, the sensor detects the product passes through, the signal is transmitted back to the labelling control system, in the appropriate position control system to control the motor to send out the label and attached to the bottle to be labelled position, the product flows through the over-labelling device, the over-labelling belt to drive the product to rotate, the label is rolled over the label so that the label is completely coated with the plastic glass bottles.
product advantages：
Wide range of application:
it can meet the full-periphery labelling or half-periphery labelling of round bottles, and it is simple to change the shape of round bottles of different sizes, and it is convenient to adjust.
High label overlap:
the labelling part is adjustable in x/y/z directions and inclination with eight degrees of freedom, adjustable without dead angle, high label overlap.
Excellent labelling quality:
the use of elastic labelling belt, labelling smooth, no wrinkles, improve packaging quality.
Flexible application:
bottle standing labelling, with automatic bottle separation function, can be single machine production, can also be connected to the assembly line production.
Intelligent control:
automatic photoelectric tracking, with nothing not labelling function.
High stability:
Panasonic PLC + Panasonic touch screen + Panasonic needle-shaped electric eye + Germany SICK SICK measuring labelling electric eye composed of advanced electronic control system, to support the equipment 7 × 24 hours operation.
Simple adjustment:
labelling speed, conveying speed and bottle dispensing speed can be adjusted steplessly as needed.
Sturdy and durable:
adopting three-bar adjustment mechanism, making full use of the stability of the triangle, the whole machine is solid and durable. Made of stainless steel and high-grade aluminium alloy, in line with GMP production requirements.
Expanded functions:
Thermal coding/jet coding function (production date, product lot number, expiry date to).
Automatic feeding function (considered in conjunction with the product).
Automatic feeding function (considered in conjunction with the product).
Add labelling device.
Ideal markets：
White wine vat filling
Bird’s nest bottle
Fruit juice
Honey
Soy sauce
Mineral water
Case Video：
FAQ:
Automatic label applicator for bottles is a machine that automatically applies labels to all types of bottles, increasing productivity and ensuring quality.
Our automatic bottles label applicator is widely used in various industries such as food, beverage, alcohol, pet, household chemicals, pharmaceuticals, etc..
Yes, you can choose between economical semi-automatic bottles label capplicator and automatic bottles label applicator, applicable labels: self-adhesive labels, self-adhesive film, e-code, bar code, etc.
The equipment is equipped with a touch screen control, which makes the operation easier and more convenient, and multiple language options can be set according to your own needs. We also provide detailed operation manuals and troubleshooting guides for users to understand more quickly.
