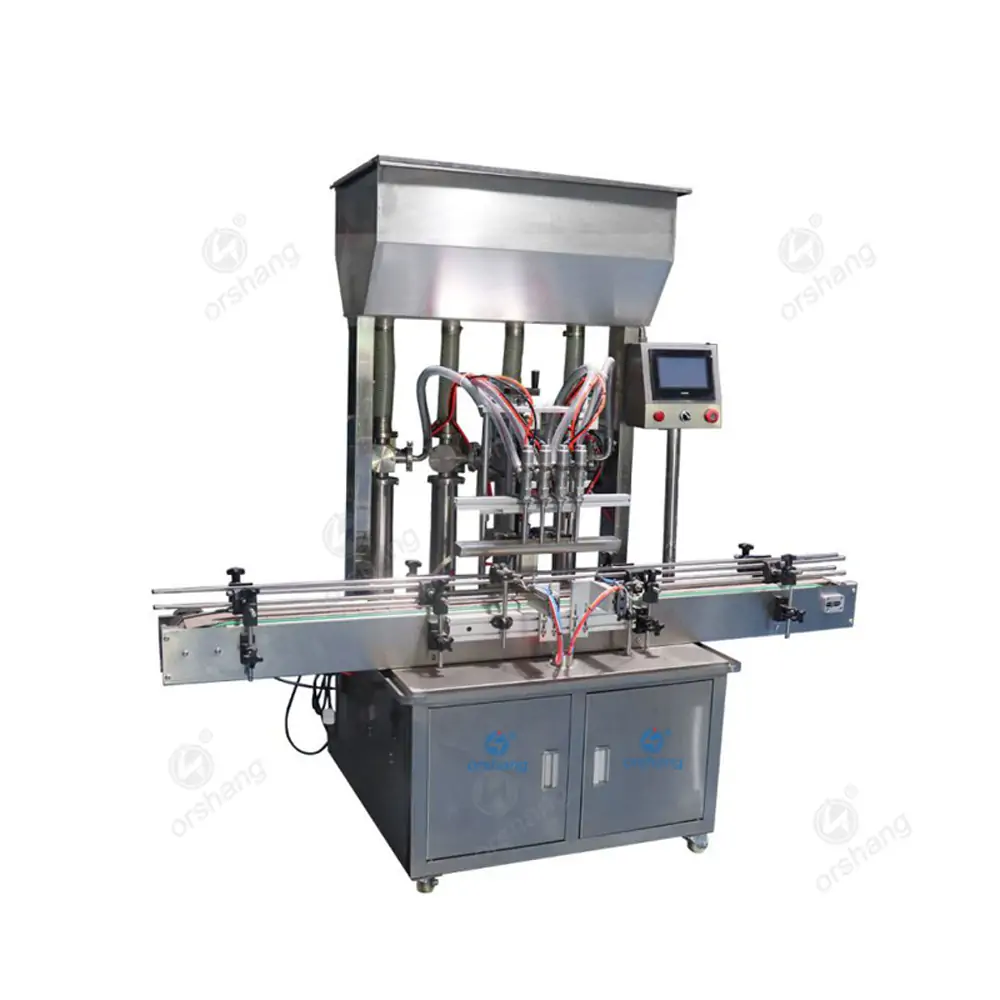

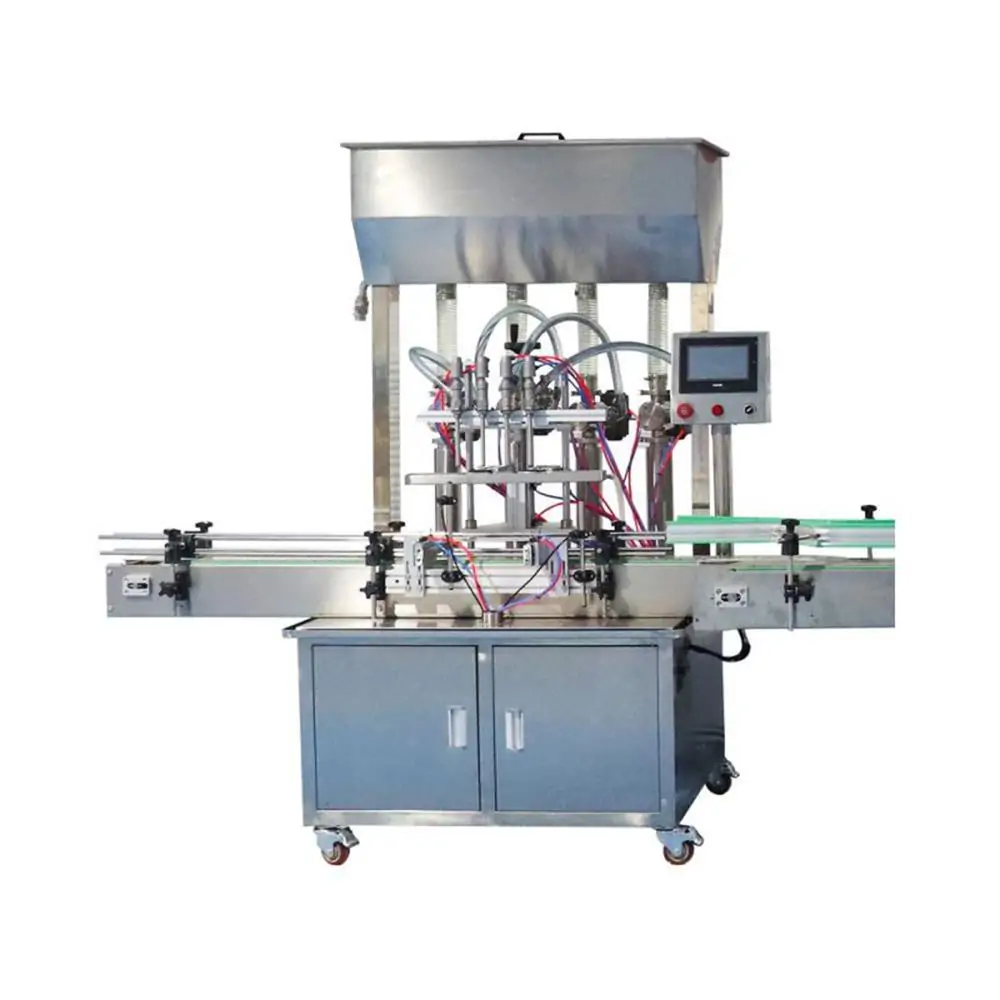

fully automatic bottle filling machine positively

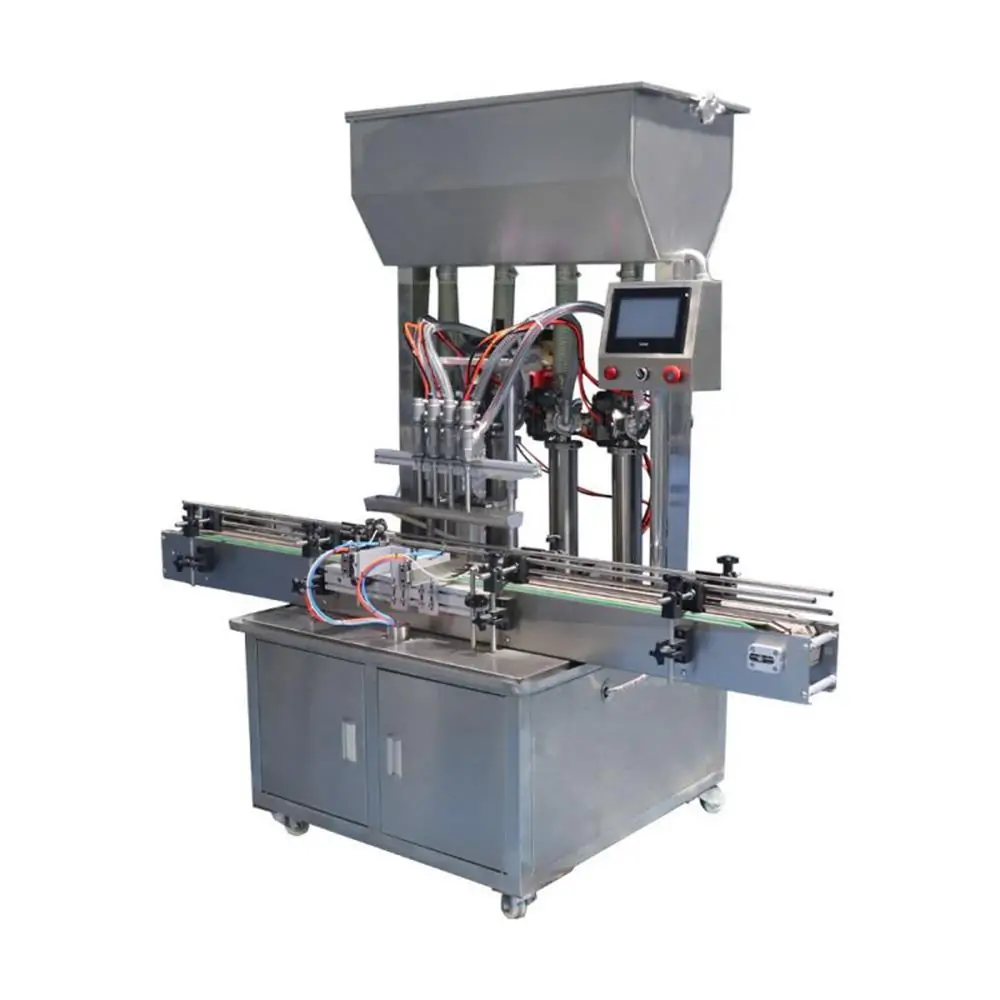

fully automatic bottle filling machine lateral side

bottle filling machine manufacturer

We have a small bottle liquid filling machine, specializing in filling speed and filling volume requirements are not high for the enterprise, but also for manual semi-automatic filling machine filling speed feel slower. This one is just suitable for your enterprise, occupies a small area, and at the same time can meet the automatic filling machine.
Designed to accurately and quickly handle the filling of different containers and different types of bottles. From high volume large bottle filling equipment to small batch bottle filling machines, we can provide customized solutions for bottle liquid packaging machine suitable for your specific requirements.

Send Inquiry

Category: Liquid Filling Machine

Description
Reviews (0)

Product Parameters:

Filling accuracy:	±1-3%
Labeling Accuracy:	±1%
speed:	30-60pcs/minutes
Applicable width:	30-60MM
Applicable height:	30-230MM
Overall size (LWH):	2800mm950mm1100mm
Total Weight:	235Kg
Voltage:	110-230V
Delivery time:	7 days(Spot) 15-30days(customizable)
Minimum order quantity:	one unit
Port of shipment:	Shenzhen and Guangzhou
Payment:	50% deposit, 50% after acceptance (full payment for shipment)
Delivery capacity:	20-35 pcs/min
Delivery time:	15-30 days
Packing Information:	All packed in wooden case
Payment method:	L/C þ D/A þ D/P þ Western Union þ Money Gram ¨ T/T¨ Paypal

The working principle of orshang bottle filling machine:

1. Bottle feeding stage:

The equipment transports bottles or other containers to the filling head position through the transfer belt or screw bottle feeding device.The sensor or photoelectric detection confirms whether the bottles are put into the correct position to avoid side leakage or overflow during the filling process. The filling error of our bottle filling machine is about ±0.1.

2. Positioning and cleaning (expanding customization):

For food and medicine industry filling, the bottles need to be re-cleaned before filling to ensure that there is no pollution in the bottles before filling.

3. Filling process:

According to the filling characteristics of the liquid, we have several different filling methods:

Gravity filling: suitable for low-viscosity liquids, using the gravity of the liquid naturally flows into the bottle.

Pressure filling: suitable for high-viscosity liquids or gaseous liquids, through the pressure pump to press the liquid into the bottle.

Vacuum filling: suitable for volatile or foaming liquids, by forming a vacuum inside the bottle, the liquid will be sucked into the bottle.

Metering Filling: Suitable for occasions where high precision is required, the filling volume of each bottle is accurately controlled by a flow meter or metering pump.

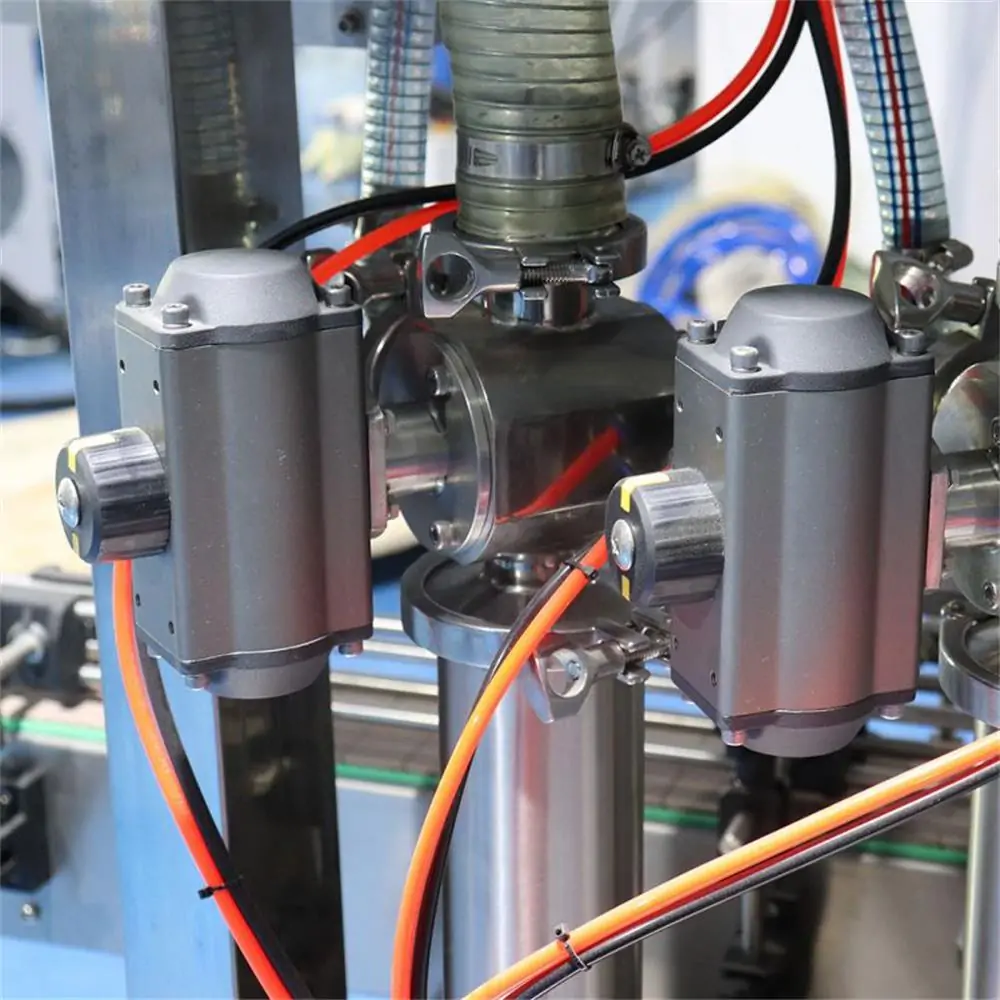

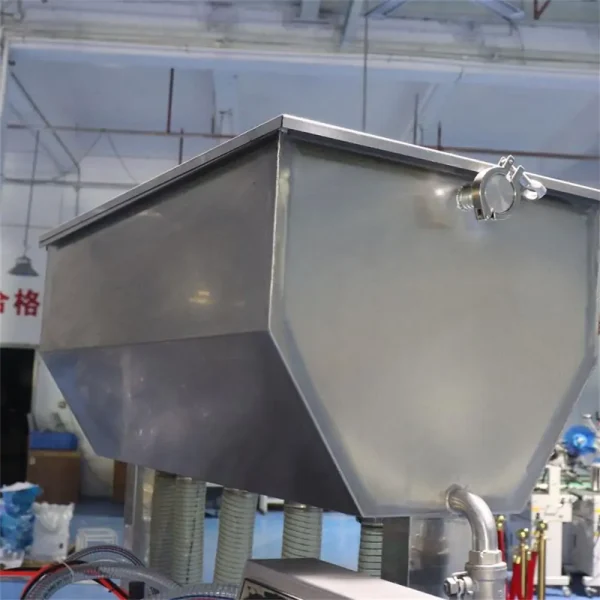

The filling valve opens and the liquid flows into the bottle from the reservoir. The filling volume is controlled by a pre-set time or weight sensor to ensure the accuracy of filling each bottle.

4、Stop or top cap capping (expand customization):

After the filling reaches a predetermined amount, the filling valve is automatically closed to prevent the liquid from continuing to flow out. At this time, the machine will quickly move the filled bottles out of the filling position, ready for encapsulation.

The encapsulation section carries out encapsulation operations according to different types of bottle caps (e.g., screw caps, press caps, snap caps, etc.). Typically, the encapsulation unit contains an automatic capping machine, a capping machine, or some other mechanical device that ensures the sealing of each bottle.

Product Features Advantages:

1.Optional multi-head filling:

2 head, 4 head, 6 head, eight head 12 head-36 head, you can discuss your project with our engineers to recommend a bottle liquid filling solution that suits your needs.

2.Fully automatic bottle filling equipment:

these filling machines are designed for industries that require fast productivity and minimal downtime to reduce labor costs.

3.Our flexible fully automatic liquid filling machines:

these perfect for small to medium sized production lines and are an excellent choice for boutique producers and start-ups looking for a cost-effective solution. Extremely short setup times, versatility and expandability allow you to increase production capacity effortlessly.

4. Easy integration with existing bottle filling equipment:

All of our equipment integrates easily with existing production lines. Whether you have a fully automated system or a semi-automated system, our filling machines seamlessly integrate with cappers, labelers, conveyors and other equipment.

Our team provides full support for installation, customization and maintenance, ensuring a smooth transition and optimized operation.

Ideal markets：

tomato jam filling

toner skin care filling

whiskey filling

red wine filling

beer filling

Perfume Essential Oil Filling

Case Video：

Bottle Filling Machine FAQ

what is bottle liquid filling machine?

Bottle liquid filling machine is a kind of automated production bottle filling process, specializing in filling liquid materials into empty bottles, instead of manual filling more efficient filling equipment.

What kind of bottle type is suitable for orhang this bottle filling machine?

This bottle automatic filling machine is designed to be very flexible and adaptable to different sizes and shapes of bottles, which include but are not limited to round bottles, square bottles, shaped bottles, small bottles, vats and so on.

By adjusting the mechanical mechanism and parameter settings of the filling machine, it can ensure that different shapes and sizes of bottles can be filled accurately and efficiently during the filling process.

Does this automatic bottle filling machine have requirements for bottle materials?

This filling machine can accommodate a wide range of materials: glass, plastic, PET bottles, etc.

What industries is this bottle filling machine suitable for?

Bottle filling machine is suitable for industries: food, beverage, cosmetics, mineral water, alcohol, edible oil, etc.

What if the filling speed is not up to our requirement?

Our bottle filling machine is 4 heads for filling at the same time, if you want to increase the speed, you can choose to increase the filling head, we have 4 heads, 6 heads, 8 heads, 12 heads-36 heads can be, you can also customize our intelligent filling production line, increase the labeling machine, bottle capping and bottle sealing machine.

How long is the shipping time?

We have stock equipment and customized equipment.

Shipping time for stock equipment: we have about 200 sets in stock all year round, and the fastest shipping time is 7 working days. Customized equipment shipping time: according to your needs 15-30 working days.
