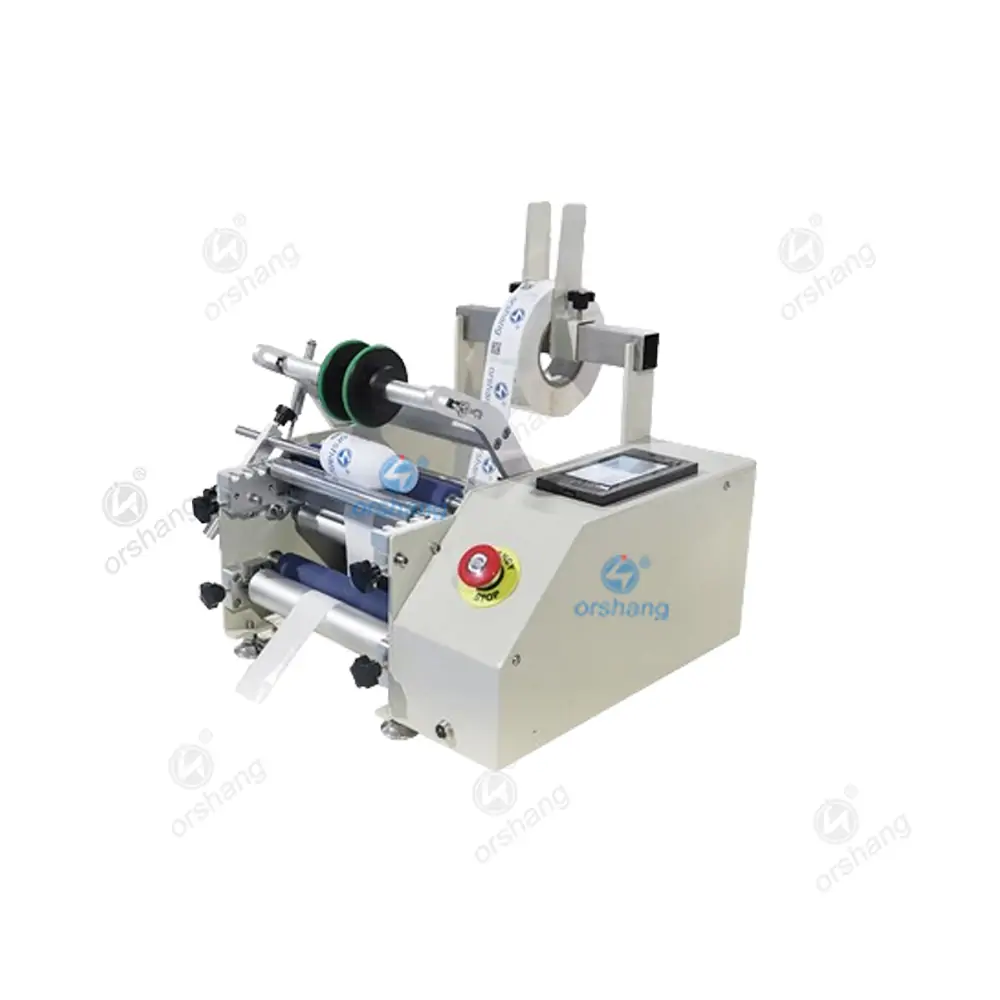

Bottle sticker labeling machine
Orshang, as a manufacturer in the automated packaging industry, can provide labelling machines, filling machines and packaging machines . Bottle labelling has a direct impact on the aesthetics of the product packaging, the brand image and the consumer’s willingness to buy or not.
Traditional manual labelling machines are not only inefficient, but also difficult to ensure the accuracy and consistency of ti eh package, while our Bottle Sticker Labeling Machine has the difference between fully automatic and semi-automatic, depending on the amount of your needs to choose the right bottle labelling equipment.
Product parameters:
| Labeling accuracy: | ±1mm |
|---|---|
| Labeling speed: | 20～40pcs/minutes |
| Applicable round bottle diameter： | Φ20mm～Φ70mm |
| Applicable height: | 15-300mm |
| Applicable length： | 20-220mm |
| Applicable width： | 15-180mm |
| Inner diameter of label roll: | Φ76 mm |
| Label outer diameter: | Φ280 mm |
| Machine size (L*W*H) ： | 440*440*480(mm) |
| Power supply ： | 220V/50HZ |
| Machine weight： | 56KG |
| Minimum order quantity: | one unit |
| Shipping Port ： | Guangzhou/shenzhen |
| Payment Method： | 50% deposit and 50% after acceptance |
| Delivery Capacity ： | 20-35pcs/min |
| Delivery Time： | ≧15 working days |
| Packing Information： | All packed in wooden crates |
| Payment Method： | L/Cþ D/A þ D/Pþ Western Unionþ Money Gram T/T Paypal |
Bottle sticker labeling machine working principle:
Core working principle: through the traction motor drives the label through the peeling plate peeling out the label, and then the roller rotates the product so that the label is stained on the product.
Operation process: manually place the product -> equipment labelling -> manually take out the labelled product.
product advantages：
High degree of automation:
Start switch by the Panasonic brand induction fiber optic completion, without manual foot switch (you can also use a foot switch); press the top mechanism of the entire up and down action by the cylinder instead of complete, significantly reducing the operator’s labour intensity, the original production staff is also can be more relaxed.
Touch screen control:
Luxurious and powerful data memory function; bottle type only needs to be adjusted once, can be put into production, easy and fast. Support up to 50 groups of data.
Compatible with conical bottle labelling:
With taper adjustment knob, simple adjustment can meet the taper bottle labelling.
Good labelling quality:
Label head and tail docking high degree of overlap, no wrinkles, no bubbles, to enhance the quality assurance.
optional:
Positioning sensor is used to achieve positioning labelling function.
Stainless steel material:
The equipment is mainly made of 304 stainless steel and 6061 high-grade aluminium alloy, in line with GMP production requirements.
High stability:
Adopting Panasonic PLC+German Sick photoelectric sensor, Meanwell power switch control, stable performance, support 7×24h continuous work.
switching simple:
Toggle selector switch can choose single labeling or double labeling, double labeling state, the spacing between the front and back labels can be freely adjusted.
Ideal markets：
Bottle sticker labeling machine is used in food and beverages, cosmetics, and drug industries. It can be carbonated soda in a bottle, canned food, cosmetic or even a pharmaceutical bottle our machines do a good job in labeling.
White wine vat filling
Bird’s nest bottle
Fruit juice
Honey
Soy sauce
Mineral water
Case Video：
FAQ:
Our Bottle Sticker Labeling Machine can accept various label materials inclusive of: Self adhesive labels, paper labels, PVC labels etc. However, we also offer customisation service for you, thus are capable of customising the appropriate label type for you.
One of the advantages of the equipment which we use in our production is the flexibility of the system to accommodate all sorts of shapes and sizes of bottles. To ensure that various bottles are labelled appropriately, then simple changes in the labelling solutions are enough. We also offer,instruction manuals that enable you to operate and fine tune the equipment parameters in a very easy manner.
That is why the labelling speed of the equipment depends on the configuration selected and the size of bottles. As it stands, our Bottle Sticker Labelling Machine has the functionality to label between tens to hundreds of bottles in a minute. To have more precise information regarding the labelling speed go to our customer service section.
The purchase and installation process of the equipment is very simple. We will help you to adjust the number according to your needs, no need to install the machine when you get it, you can operate it by pressing the button. You can through our official website or customer service staff to understand the product information, and choose the configuration for you. We will also provide you with operation training and after-sales service support after you confirm your purchase.
