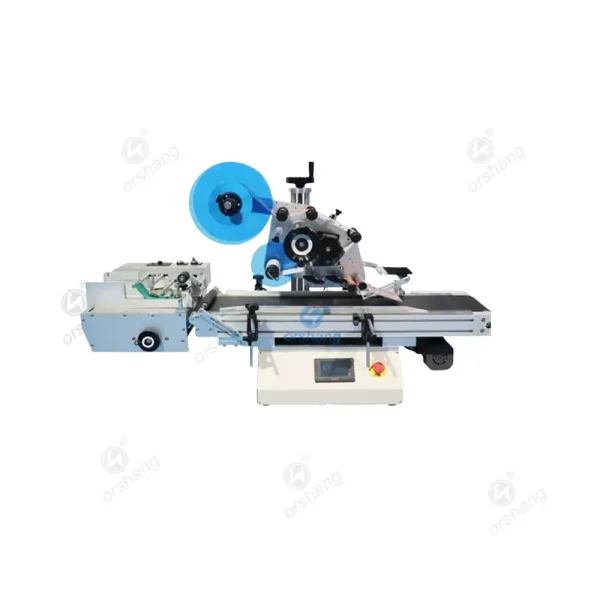

Desktop small automatic card separation and labeling machine
With the increasing demand for miniaturisation and automation, our desktop small automatic card separation and labelling machine is a desktop design desktop automatic card separation and labelling machine, designed for separating and quickly labelling all kinds of cards, paper, PE bags, cartons, for stacked products to be automatically It is suitable for stacked products to be separated and labelled automatically. We will give you an in-depth introduction to the machine’s working principle, product advantages and frequently asked questions.
product parameters:
| Labeling accuracy: | ±1mm |
|---|---|
| Labeling speed: | 20～50pcs/minutes |
| Applicable round bottle diameter： | Φ15mm～Φ160mm |
| Applicable length： | 15-380mm |
| Applicable width： | 10-230mm |
| Inner diameter of label roll: | Φ76 mm |
| Label outer diameter: | Φ280 mm |
| Machine size (L*W*H) ： | 750×420×500(mm) |
| Power supply ： | 220V/50HZ |
| Machine weight： | 56KG |
| Minimum order quantity: | one unit |
| Shipping Port ： | Guangzhou/shenzhen |
| Payment Method： | 50% deposit and 50% after acceptance |
| Delivery Capacity ： | 20-35pcs/min |
| Delivery Time： | ≧15 working days |
| Packing Information： | All packed in wooden crates |
| Payment Method： | L/Cþ D/A þ D/Pþ Western Unionþ Money Gram T/T Paypal |
Desktop small automatic card separation and labeling machinee working principle:
Automatic card separation:
The built-in separator in the device separates stacks of cards one by one, ensuring that each label and card is fed independently and correctly. The machine automatically adjusts the separation force according to the thickness and material of the cards, ensuring that no damage is caused to the surface of the cards.
Conveyor belt transport:
Using advanced sensors and control systems, the separated cards are transported by conveyor belt to the precise labelling position.
Precise labelling:
Once the card reaches the labelling position, the label printing and labelling system in the machine quickly applies the label. The equipment is equipped with high sensitivity sensors to ensure the precise position of the labels and to avoid any deviation of the labelling.
Label detection and automatic correction:
The device is equipped with an intelligent detection system that identifies whether the label is attached completely or not, and automatically adjusts the labeling angle and position if offset is detected, thus ensuring the accuracy and neatness of the label.
product advantages：
Compact desktop design:
The compact design of the device takes up little space, making it ideal for use on a workbench, desktop or counter without affecting other activities in the office area.
Efficient automatic separation:
the machine is able to accurately separate a wide range of cards of different thicknesses and materials, whether they are plastic, paper or composite cards, moulded cardboard boxes or PE bags, the small automatic card separation and labelling machine can easily cope with them.
Accurate and fast labelling:
the equipment has a high-precision labelling system, which can ensure that each card is attached to the label in the same position, greatly improving the accuracy of the label.
Colourful touch screen interface:
it can be turned on by gently touching, no need for complicated procedures, simple interface, and multiple languages can be selected.
Ideal markets：
White wine vat filling
Bird’s nest bottle
Fruit juice
Honey
Soy sauce
Mineral water
Case Video：
FAQ:
Our automatic card labelling machines can handle a wide range of card materials, including plastic cards, paper cards, composite materials and more, making them highly adaptable.
Desktop small automatic card separation labeling machine is suitable for many shapes of materials and packages such as colour box, PE bag, card, sheet, whether it is flat card, or soft PE bag, we can label them accurately.
The machine is much faster than manual labelling and can significantly increase the capacity of the optimised production line, while reducing the interference of manual factors and ensuring high speed of automated labelling.
