laundry detergent flat bottle labeling machine product parameters:
| Labeling accuracy: | ±1mm |
|---|---|
| Labeling speed: | 20～50pcs/minutes |
| Applicable round bottle diameter： | Φ15mm～Φ160mm |
| Applicable length： | 15-380mm |
| Applicable width： | 10-230mm |
| Inner diameter of label roll: | Φ76 mm |
| Label outer diameter: | Φ280 mm |
| Machine size (L*W*H) ： | 750×420×500(mm) |
| Power supply ： | 220V/50HZ |
| Machine weight： | 56KG |
| Minimum order quantity: | one unit |
| Shipping Port ： | Guangzhou/shenzhen |
| Payment Method： | 50% deposit and 50% after acceptance |
| Delivery Capacity ： | 20-35pcs/min |
| Delivery Time： | ≧15 working days |
| Packing Information： | All packed in wooden crates |
| Payment Method： | L/Cþ D/A þ D/Pþ Western Unionþ Money Gram T/T Paypal |

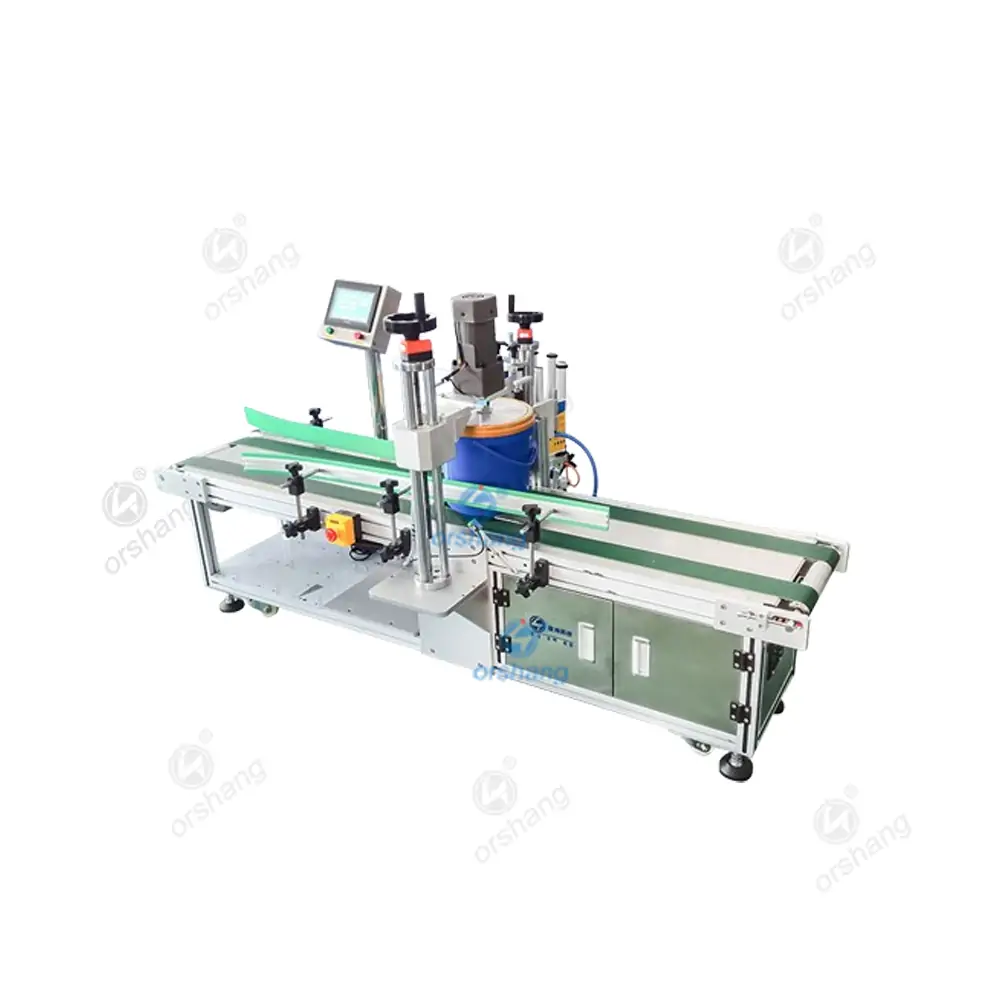

Paint bucket labeling equipment
Orshang manufacturer offers semi-automatic paint pail labelling machine, automatic chemical paint pail labelling equipment and intelligent paint chemical automated labelling and filling production line, we focus on automated packaging solution customisation for your production.
This article explores the key features, benefits and applications of this equipment to help you choose the most suitable production solution.
product advantages：
Automatic barrel labelling:
automatic transport to the labelling area is achieved through a conveyor belt, ensuring a smooth and unobstructed production line.
Accurate positioning attachment:
Equipped with advanced sensors to ensure accurate placement of labels, reducing waste and enhancing product appearance.
Colourful touch screen controller:
Intelligent touch screen for simpler operation and easy to quickly adjust and set parameters.
Environmentally friendly and energy-saving design:
low energy consumption motor and no object without labelling energy-saving mode to reduce energy consumption
Working principle:：
- The controller detects the barrel to be labelled on the conveyor belt through the barrel position detection sensor, and then extends the bottle cylinder and blocking cylinder.
- At the same time, lift up the barrel cylinder (expansion), start the bottle (barrel) motor, rotate the barrel, when the barrel is detected on the set mark, start the label feeding stepping motor, quickly send out the label, with the roll label motor action.
- When the label gap is detected by the label position detection sensor, stop the stepping motor to send the label action, and at the same time, reset the bottle jamming cylinder, lifting cylinder, and blocking cylinder to output the barrel, and the controller counts the labels that have been applied.
- At the same time refresh the display screen, judge each setting value, timely issue prompt alarm, effective control of the normal operation of the equipment. Again detected with the same cycle.
Ideal markets：
- It is especially suitable for the automatic production line of all kinds of fluid oils, paints, lacquers, pigments, additives, etc. in the chemical industry, and is also suitable for the automatic on-line labelling of emulsion-type materials in round barrels in the food and pharmaceutical industries. (Users need to provide samples of containers and some characteristic parameters).
White wine vat filling
Bird’s nest bottle
Fruit juice
Honey
Soy sauce
Mineral water
Case Video：
FAQ:
Automatic paint pail labelling system in the labelling process without human intervention, but in the feeding and receiving environment requires manual operation.
Can expand our handles device to help better labelling. Can also be installed before the handles are not barrel labelling.
Besides paint pail labelling machine, we also provide paint pail filling machine, paint filling and labelling production line.
It is especially suitable for labelling of oils, paints, lacquers, pigments, additives and other industries which have fluidity.
