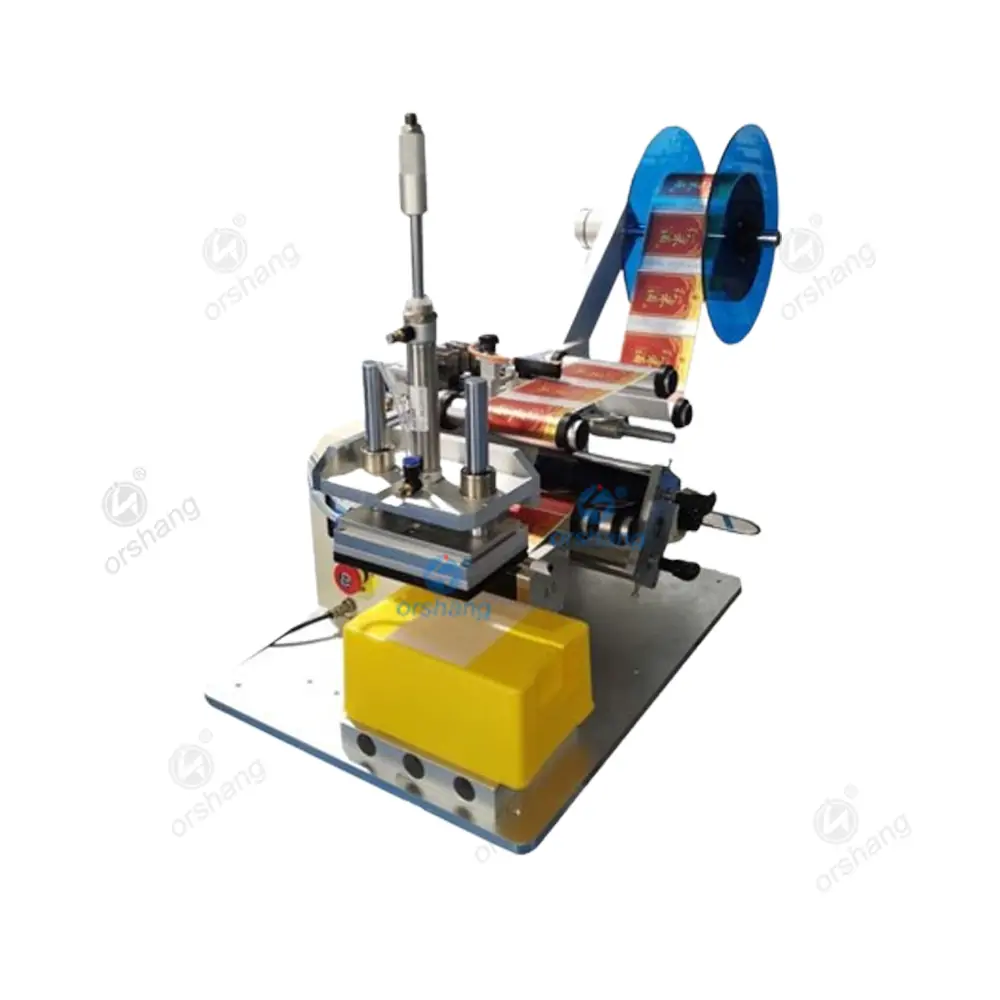

Semi automatic flat labeling machine
Looking for semi-automatic labelling for boxes or surface labelling for bags? No matter what you are looking for labelling equipment, Orshang can meet your needs, we do automation equipment for more than ten years manufacturer, for the global 100000 + customers to provide labelling solutions, you can put your project with us to communicate in detail, according to your needs, you recommend the perfect labelling programme for you! Orshang semi-automatic plane labelling machine is designed specifically for the search for cost-effective and precise labelling Orshang semi-automatic flat surface labelling machines are designed for companies looking for cost-effective, accurate labelling solutions for a wide range of flat surfaces such as bottles, cases, cartons/bags, etc. They offer great flexibility and control for small and medium-sized businesses.
Product parameters:
| Labeling accuracy: | ±1mm |
|---|---|
| Labeling speed: | 20～50pcs/minutes |
| Applicable round bottle diameter： | Φ15mm～Φ160mm |
| Applicable length： | 15-380mm |
| Applicable width： | 10-230mm |
| Inner diameter of label roll: | Φ76 mm |
| Label outer diameter: | Φ280 mm |
| Machine size (L*W*H) ： | 750×420×500(mm) |
| Power supply ： | 220V/50HZ |
| Machine weight： | 56KG |
| Minimum order quantity: | one unit |
| Shipping Port ： | Guangzhou/shenzhen |
| Payment Method： | 50% deposit and 50% after acceptance |
| Delivery Capacity ： | 20-35pcs/min |
| Delivery Time： | ≧15 working days |
| Packing Information： | All packed in wooden crates |
| Payment Method： | L/Cþ D/A þ D/Pþ Western Unionþ Money Gram T/T Paypal |
Working principle：
Semi-automatic flat labelling equipment works on an semi automatic basis where the operator only positions the product on the labeling zone. Once the product is in the right place, the machine stamps the right label on the product surface without leaving any marks. In a single axis, it determines the label position through movement and sensor technology as specific settings modeled to accommodate / modify sizes, types of labels, and application speeds. The semi-automatic labeller design is the improvement of the control over the labelling process without experiencing high costs of the fully automatic labelling.
Product advantages：
Economically ideal option
Serves as a cost effective and efficient solution to fully automated flat labelling system, allows semi automated labelling at a high speed and accuracy.
Adapts to all surface labelling products:
Applicable to products that need self adhesive label on flat, curved, circumferential, concave or convex surface and so on such as case, cap, container, carton, bag, etc.; particularly suitable for cosmetic, food, medicine, pet and so on industries.
Newcomers can also operate:
Semi-automatic flat labelling machine is convenient to control, short time to set up, no requirement to learn complicated operation, especially for small and middle-sized enterprises.
Precise labelling:
Automated sensor technology enables the sticking of each flat label with a precision of about ±0.5%which enhances the image quality of the product.
Compact design:
A desktop labelling equipment has small size for production which makes it consume a little of production space.
Desktop compact design:
The small size of the desktop labelling machine makes it easy to integrate into existing production lines or use as a stand-alone unit, saving space.
Ideal markets：
White wine vat filling
Bird’s nest bottle
Fruit juice
Honey
Soy sauce
Mineral water
FAQ:
Semi-automatic plane labelling machine is mainly used for labelling on the plane of the products in the song, such as cosmetic flat bottles, boxes, plastic boxes, caps, etc. By changing the over-labelling mechanism, it can also be applied to the uneven surface such as concave-convex plane, the labelling of the arc surface. In addition, it can also stick different specifications of the workpiece labelling.
The operator is usually required to manually place the product on the labelling platform. Once the product is positioned correctly, the machine applies the label smoothly and evenly to the product surface.
Yes, we are a labelling manufacturer and can customise the labelling machine according to the customer’s needs and product characteristics.
Yes, the machine is designed with simple controls that allow operators to get up and running quickly and without complex training.
The machine can label approximately 20-40 products per minute, depending on the size and type of product.
No, semi automatic flat labeling machine labels are limited in size, it is not a universal labelling machine. You can communicate with us for details.
