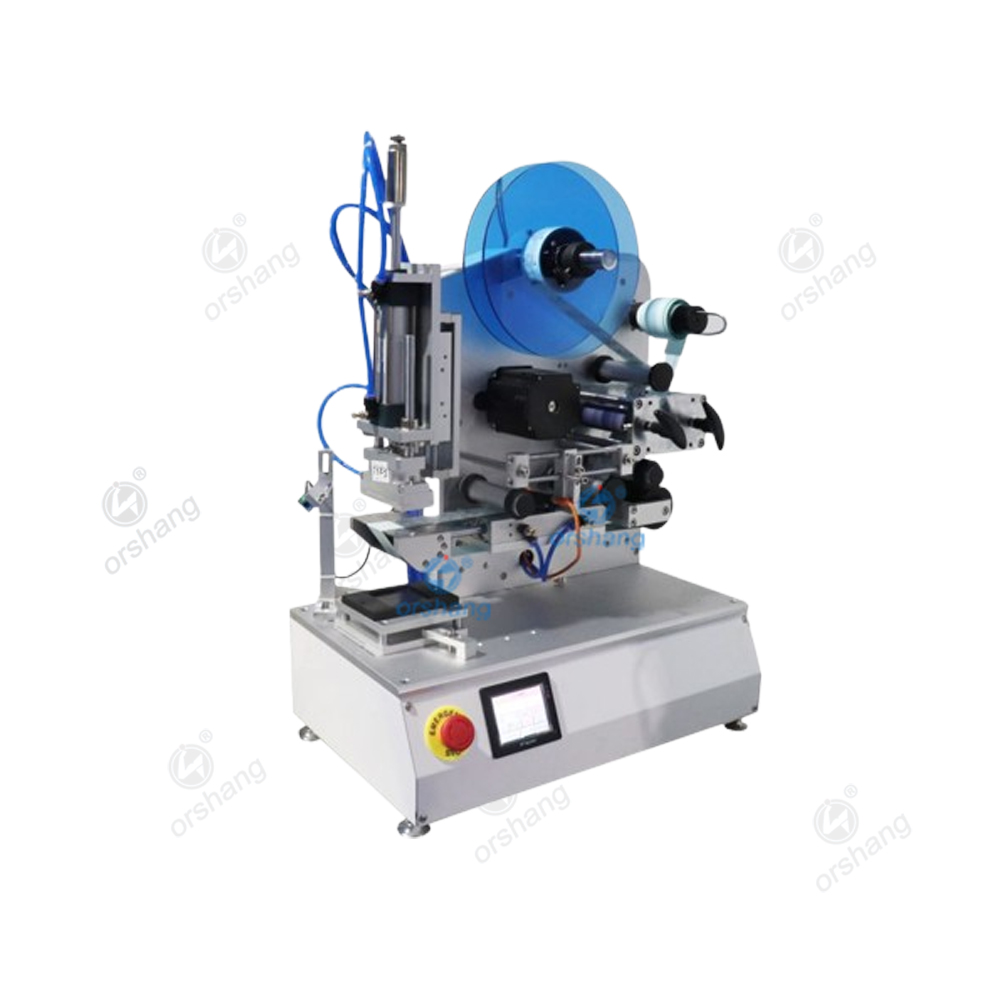

Semi automatic label applicator machine
The semi automatic label applicator machine is the best choice to replace manual labelling machines! Ideal for companies that need accurate labelling but do not require a fully automated system.
Semi-automatic label applicator machine is widely used in food, beverage, all kinds of alcohol, pharmaceutical, daily chemical and other fields, it has the flexibility to attach labels of different sizes and shapes on products such as bottles, containers, cans or boxes. The semi-automatic labeller is equipped with sensors to detect the position of the product and ensure that labels are applied evenly and without error.
Product parameters:
| Labeling accuracy: | ±0.2mm |
|---|---|
| Labeling speed: | 15～25pcs/min |
| Applicable round bottle diameter： | Φ15mm～Φ160mm |
| Applicable length： | 15～100mm |
| Applicable width： | 15～95mm |
| Applicable height： | 0.2mm～150mm |
| Label outer diameter: | Φ280 mm |
| Machine size (L*W*H) ： | 550*420*760(mm) |
| Power supply ： | 220V/50HZ |
| Machine weight： | 67KG |
| Minimum order quantity: | one unit |
| Shipping Port ： | Guangzhou/shenzhen |
| Payment Method： | 50% deposit and 50% after acceptance |
| Delivery Capacity ： | 20-35pcs/min |
| Delivery Time： | ≧15 working days |
| Packing Information： | All packed in wooden crates |
| Payment Method： | L/Cþ D/A þ D/Pþ Western Unionþ Money Gram T/T Paypal |
Product advantages：
Cost-effective:
This is a more cost-effective option than fully automated systems, helping companies to optimise their labelling processes without adding excessive costs.
High quality labelling：
Higher than manual labelling effect, with double positioning of product positioning and label correction, high label head-to-tail docking, no wrinkles or bubbles.
Stable performance：
Stable performance, the use of PLC fibre optic sensor electronic control system, to support the equipment to run for a long time, reduce equipment downtime.
Support different label size labelling：
Simple adjustment, a variety of functions with one-key switching, different labels to switch simple and fast, improve efficiency.
Multi-language support：
Customised selection of language according to requirements.
Simple operation：
Colour touch screen control, with powerful data memory function, all bottle types need to be adjusted only once, when replacing the bottle type, just call out the data, no need to further adjust to start operation and production, support 50 groups of data, simple and efficient.
Semi-automatic label applicator machine option:
Optional ribbon coder or inkjet printer, printing production date and batch number on the label, to achieve coding-labelling integration.
Ideal markets：
White wine vat filling
Bird’s nest bottle
Fruit juice
Honey
Soy sauce
Mineral water
Case Video：
FAQ:
It may be caused by the label deviation, slippage of the traction wheel or inaccurate product positioning detection.
Skewed labels may be caused by the product is not placed correctly, the paper limit position is not adjusted or the support bar and bottle draw line is not balanced, etc., you can check and adjust the placement to ensure that it is smooth and centred, and at the same time, adjust the paper limit position and angle to the height and angle of the support bar.
Choosing the right semi-automatic label applicator machine needs to consider the size of the labelled product, the shape, the type of label and the needs of the production line and other factors, it is recommended to select and purchase according to the actual needs.
Continuous out of the label may be due to the electric eye monitoring sensitivity flocculation or label with deviation caused by the label, you can try to adjust the monitoring sensitivity of the electric eye to ensure that the label can be accurately identified; at the same time, check and adjust the guiding mechanism of the label belt, to ensure that the label belt to maintain stability in the transmission process.
