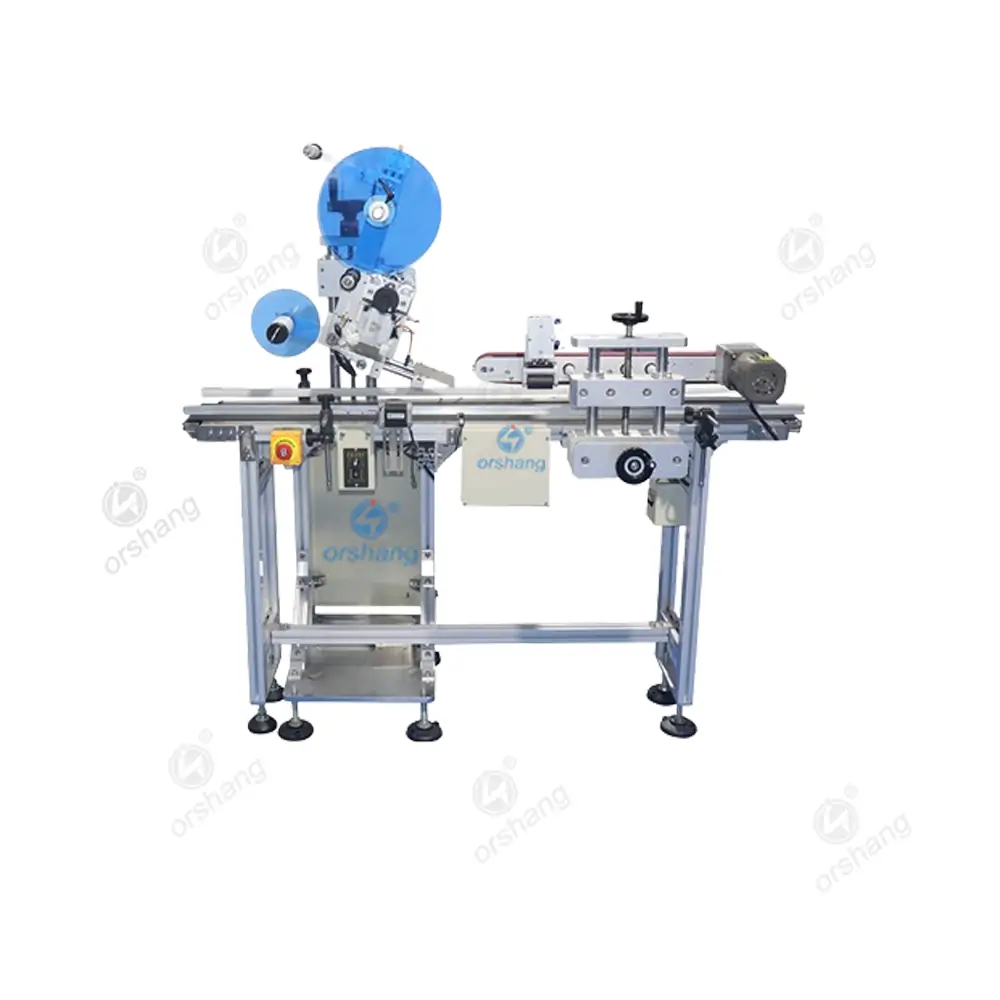

Top side labeling machine for packaging cartons
Welcome to Orshang Top Side Labeling Machine for Packaging Cartons page, it is a top side sealing and labeling machine and corner tamper-evident labeling machine specially designed for product boxes, cartons, books, folders and bags, which helps enterprises to realize efficient and professional unique packaging. We introduce it in detail from the parameters of the machine, working principle and advantages of the product.
Top side labeling machine for packaging cartons product parameters:
| Labeling accuracy: | ±1mm |
|---|---|
| Labeling speed: | 40～80pcs/minutes |
| Applicable height: | 40-400mm |
| Applicable length： | 0.2-200mm |
| Applicable width： | 40-200mm |
| Inner diameter of label roll: | Φ76 mm |
| Label outer diameter: | Φ280 mm |
| Machine size (L*W*H) ： | 1600*760*1400(mm) |
| Power supply ： | 220V/50HZ |
| Machine weight： | 180KG |
| Minimum order quantity: | one unit |
| Shipping Port ： | Guangzhou/shenzhen |
| Payment Method： | 50% deposit and 50% after acceptance |
| Delivery Capacity ： | 20-35pcs/min |
| Delivery Time： | ≧15 working days |
| Packing Information： | All packed in wooden crates |
| Payment Method： | L/Cþ D/A þ D/Pþ Western Unionþ Money Gram T/T Paypal |
Top side labeling machine for packaging cartons working principle:
- When a carton enters the top side cartons packaging labeling area via the conveyor belt, sensors accurately detect the position and size of the carton as well as the specific part to be labeled.
- The labeling control system calculates the optimal labeling path and angle based on the preset labeling parameters and label type.
- Then, the mechanical actuator (e.g. labeling arm) will accurately remove the label from the label box and fit it to the specified position of the carton according to the preset trajectory, such as sealing, corner tamper-evident position, or barcode/QR code tamper-evident area. The whole process is fast and precise without manual intervention.
Top side labeling machine for packaging cartons product advantages:
Wide range of labeling:
support flat products, cartons, plastic bags, boxes, folders, books, flat sealing labeling needs.
Strong adaptability:
support box sealing labeling, corner tamper-evident labeling and barcode / two-dimensional code anti-counterfeiting labeling and other labeling tasks, to meet the full range of labeling needs of enterprises.
Convenient operation:
Equipped with touch screen human-machine interface, easy and intuitive operation, supporting fault self-diagnosis and alarm function, making production management more intelligent.
Multiple choices:
Semi-automatic and full-automatic types are available.
Ideal markets：
White wine vat filling
Bird’s nest bottle
Fruit juice
Honey
Soy sauce
Mineral water
Case Video：
FAQ:
It is an automated labeling machine specially designed to attach labels at the corners of products, which can achieve high-precision label attachment at right angles, acute angles or other complex curved structures of products.
It is a kind of labeling equipment used in the sealing of product packaging to ensure the completion of packaging.
It is an automated labeling machine that automatically affixes anti-counterfeit labels to product packages, effectively preventing products from being illegally stolen and safeguarding product security.
This equipment is suitable for food, electronics, logistics, medicine and other industries, especially for large quantity labeling, the pursuit of efficient production occasions.
